Yanmar anodes and kit anodes

COD	Material	kg	lbs	Unit	h	l	l1	a	b	c	i	h1	Ø	Ø1	Ø2	m	Purchasable in

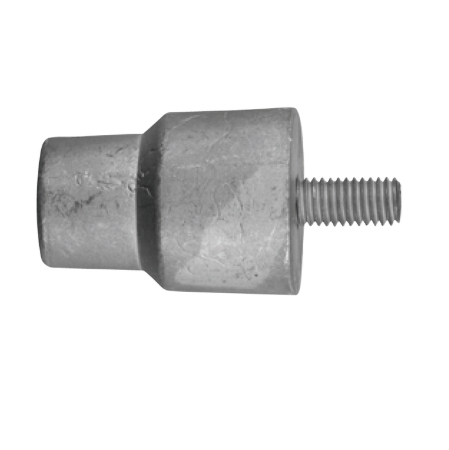

01300	Zinc	0.160	0.35	mm inch		40.00 1.57	16.00 0.63						30.00 1.18	21.00 0.83		M8	purchasable in	01300 Zinc More details COD 01300 kg 0.160 lbs 0.35 Unit mm/inch h l 40.00 / 1.57 l1 16.00 / 0.63 a b c i h1 Ø 30.00 / 1.18 Ø1 21.00 / 0.83 Ø2 m M8	Toggle details
Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01300 kg 0.160 lbs 0.35 Unit mm/inch h l 40.00 / 1.57 l1 16.00 / 0.63 a b c i h1 Ø 30.00 / 1.18 Ø1 21.00 / 0.83 Ø2 m M8 Main features Installation Location yanmar yse 8, 8ps, yse 12, 12psp. Kit Components Original Part Number 104211-41300 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01301	Zinc	0.070	0.15	mm inch		30.00 1.18	10.00 0.39		M8				20.00 0.79				purchasable in	01301 Zinc More details COD 01301 kg 0.070 lbs 0.15 Unit mm/inch h l 30.00 / 1.18 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m	Toggle details

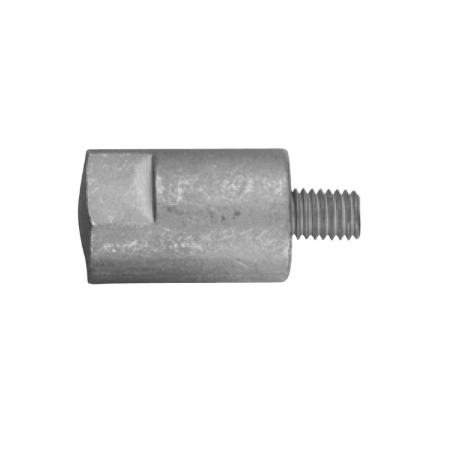

Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01301 kg 0.070 lbs 0.15 Unit mm/inch h l 30.00 / 1.18 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m Main features Installation Location yanmar: 2gm, 3gm, 3hm, 2qm, 3qm, ysb8-12, ysm8-12 series Kit Components Original Part Number 27210-200300 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01302	Zinc	0.210	0.46	mm inch	15.00 0.59								53.00 2.09	8.50 0.33			purchasable in	01302 Zinc More details COD 01302 kg 0.210 lbs 0.46 Unit mm/inch h 15.00 / 0.59 l l1 a b c i h1 Ø 53.00 / 2.09 Ø1 8.50 / 0.33 Ø2 m	Toggle details

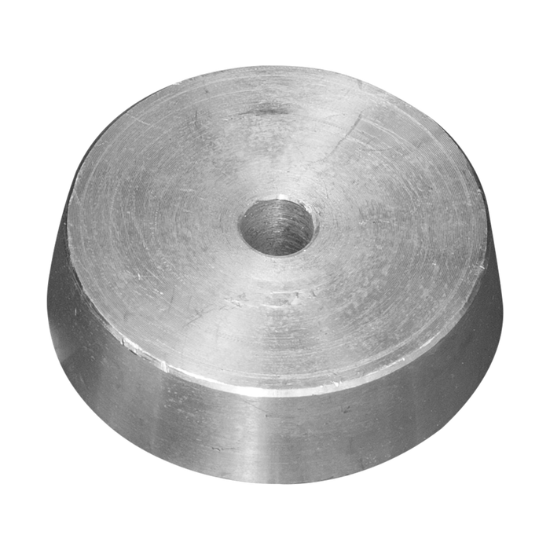

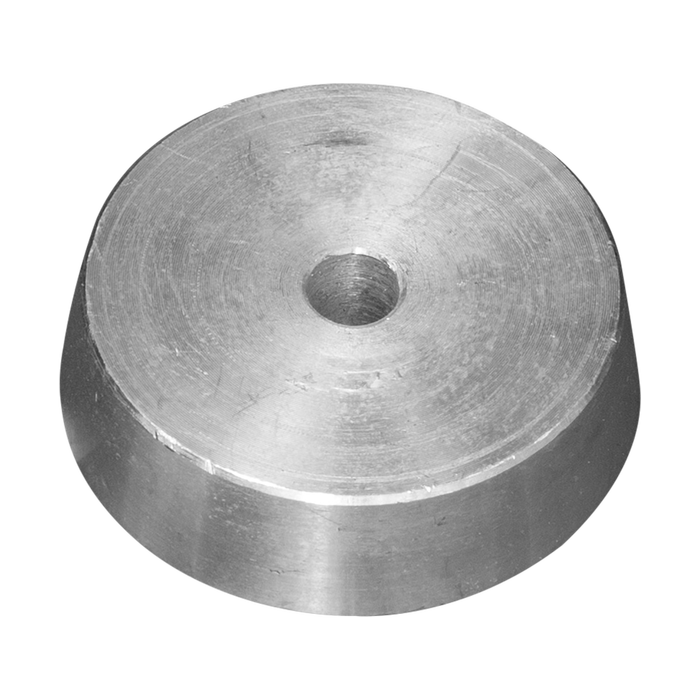

Yanmar washer for engines Zinc Manufacturer: n/a Technical information COD 01302 kg 0.210 lbs 0.46 Unit mm/inch h 15.00 / 0.59 l l1 a b c i h1 Ø 53.00 / 2.09 Ø1 8.50 / 0.33 Ø2 m Main features Installation Location 70-85hp Kit Components Original Part Number Same As 01111 Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01302AL	Aluminium	0.080	0.18	mm inch	15.00 0.59								53.00 2.09	8.50 0.33			purchasable in	01302AL Aluminium More details COD 01302AL kg 0.080 lbs 0.18 Unit mm/inch h 15.00 / 0.59 l l1 a b c i h1 Ø 53.00 / 2.09 Ø1 8.50 / 0.33 Ø2 m	Toggle details
Yanmar washer for engines Aluminium Manufacturer: n/a Technical information COD 01302AL kg 0.080 lbs 0.18 Unit mm/inch h 15.00 / 0.59 l l1 a b c i h1 Ø 53.00 / 2.09 Ø1 8.50 / 0.33 Ø2 m Main features Installation Location 70-85hp Kit Components Original Part Number Same As 01111 Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01302MG	Magnesium	0.053	0.12	mm inch	15.00 0.59								53.00 2.09	8.50 0.33			purchasable in	01302MG Magnesium More details COD 01302MG kg 0.053 lbs 0.12 Unit mm/inch h 15.00 / 0.59 l l1 a b c i h1 Ø 53.00 / 2.09 Ø1 8.50 / 0.33 Ø2 m	Toggle details
Yanmar washer for engines Magnesium Manufacturer: n/a Technical information COD 01302MG kg 0.053 lbs 0.12 Unit mm/inch h 15.00 / 0.59 l l1 a b c i h1 Ø 53.00 / 2.09 Ø1 8.50 / 0.33 Ø2 m Main features Installation Location 70-85hp Kit Components Original Part Number Same As 01111 Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

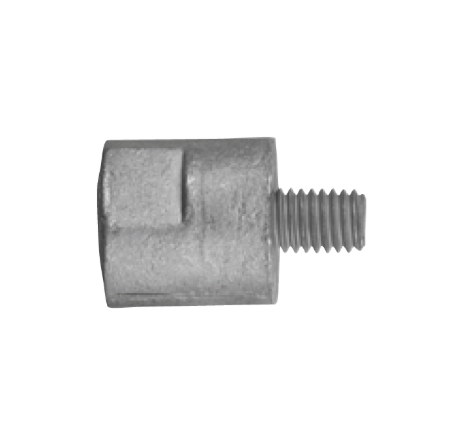

01303	Zinc	0.050	0.11	mm inch		20.00 0.79	10.00 0.39		M8				20.00 0.79				purchasable in	01303 Zinc More details COD 01303 kg 0.050 lbs 0.11 Unit mm/inch h l 20.00 / 0.79 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m	Toggle details
Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01303 kg 0.050 lbs 0.11 Unit mm/inch h l 20.00 / 0.79 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m Main features Installation Location yanmar: 1gm, 6ly3 series Kit Components Original Part Number 27210-200200 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01305	Zinc	0.830	1.83	mm inch	25.00 0.98	147.00 5.79	73.00 2.87				43.00 1.69		108.00 4.25	66.00 2.60	11.00 0.43		purchasable in	01305 Zinc More details COD 01305 kg 0.830 lbs 1.83 Unit mm/inch h 25.00 / 0.98 l 147.00 / 5.79 l1 73.00 / 2.87 a b c i 43.00 / 1.69 h1 Ø 108.00 / 4.25 Ø1 66.00 / 2.60 Ø2 11.00 / 0.43 m	Toggle details

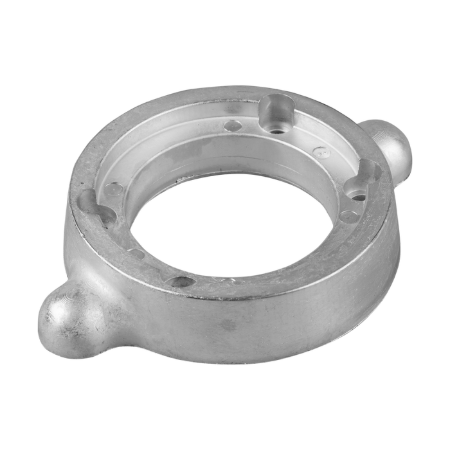

Yanmar collar for Saildrive Zinc Manufacturer: n/a Technical information COD 01305 kg 0.830 lbs 1.83 Unit mm/inch h 25.00 / 0.98 l 147.00 / 5.79 l1 73.00 / 2.87 a b c i 43.00 / 1.69 h1 Ø 108.00 / 4.25 Ø1 66.00 / 2.60 Ø2 11.00 / 0.43 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components Original Part Number 196420-02652 Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details

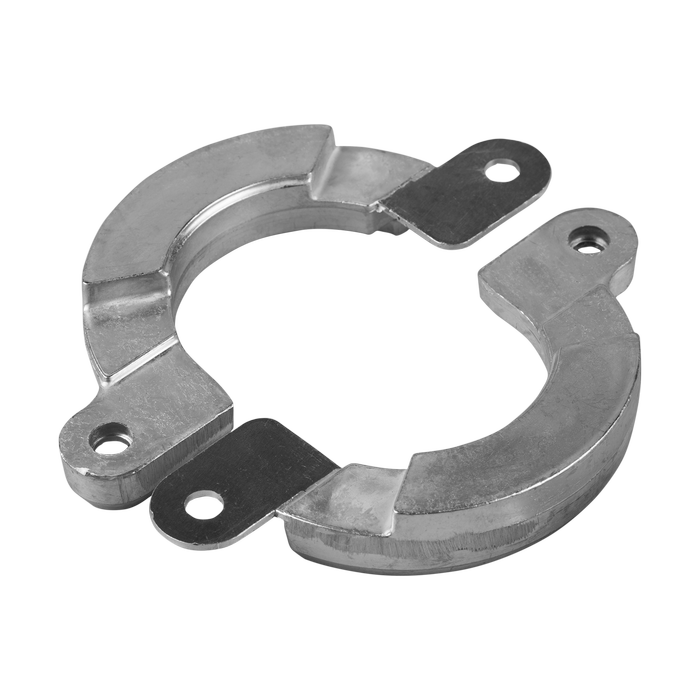

01305/1	Zinc	0.650	1.43	mm inch		123.00 4.84		24.00 0.94					8.00 0.31				purchasable in	01305/1 Zinc More details COD 01305/1 kg 0.650 lbs 1.43 Unit mm/inch h l 123.00 / 4.84 l1 a 24.00 / 0.94 b c i h1 Ø 8.00 / 0.31 Ø1 Ø2 m	Toggle details

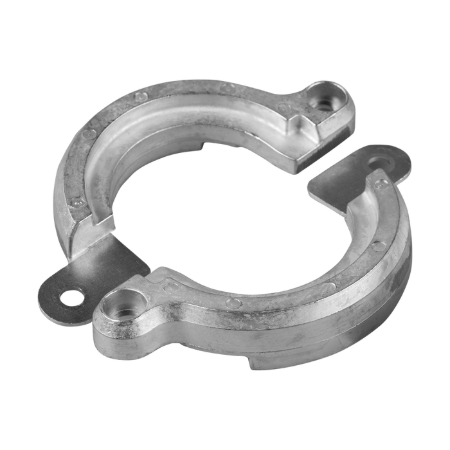

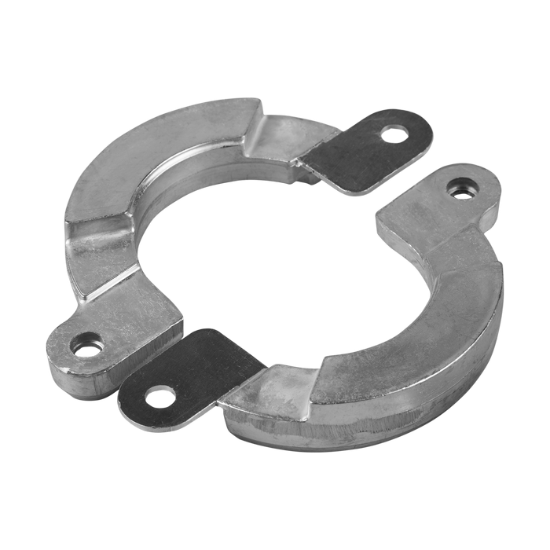

Yanmar split collar for Saildrive Zinc Manufacturer: n/a Technical information COD 01305/1 kg 0.650 lbs 1.43 Unit mm/inch h l 123.00 / 4.84 l1 a 24.00 / 0.94 b c i h1 Ø 8.00 / 0.31 Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components Original Part Number 196440-02660 Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
01305/1AL	Aluminium	0.280	0.62	mm inch		123.00 4.84		24.00 0.94					8.00 0.31				purchasable in	01305/1AL Aluminium More details COD 01305/1AL kg 0.280 lbs 0.62 Unit mm/inch h l 123.00 / 4.84 l1 a 24.00 / 0.94 b c i h1 Ø 8.00 / 0.31 Ø1 Ø2 m	Toggle details
Yanmar split collar for Saildrive Aluminium Manufacturer: n/a Technical information COD 01305/1AL kg 0.280 lbs 0.62 Unit mm/inch h l 123.00 / 4.84 l1 a 24.00 / 0.94 b c i h1 Ø 8.00 / 0.31 Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components Original Part Number 196450-02491 Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
01305/1MG	Magnesium	0.190	0.42	mm inch		123.00 4.84		24.00 0.94					8.00 0.31				purchasable in	01305/1MG Magnesium More details COD 01305/1MG kg 0.190 lbs 0.42 Unit mm/inch h l 123.00 / 4.84 l1 a 24.00 / 0.94 b c i h1 Ø 8.00 / 0.31 Ø1 Ø2 m	Toggle details
Yanmar split collar for Saildrive Magnesium Manufacturer: n/a Technical information COD 01305/1MG kg 0.190 lbs 0.42 Unit mm/inch h l 123.00 / 4.84 l1 a 24.00 / 0.94 b c i h1 Ø 8.00 / 0.31 Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components Original Part Number 196450-02441 Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
01305MG	Magnesium	0.330	0.73	mm inch	25.00 0.98	147.00 5.79	73.00 2.87				43.00 1.69		108.00 4.25	66.00 2.60	11.00 0.43		purchasable in	01305MG Magnesium More details COD 01305MG kg 0.330 lbs 0.73 Unit mm/inch h 25.00 / 0.98 l 147.00 / 5.79 l1 73.00 / 2.87 a b c i 43.00 / 1.69 h1 Ø 108.00 / 4.25 Ø1 66.00 / 2.60 Ø2 11.00 / 0.43 m	Toggle details
Yanmar collar for Saildrive Magnesium Manufacturer: n/a Technical information COD 01305MG kg 0.330 lbs 0.73 Unit mm/inch h 25.00 / 0.98 l 147.00 / 5.79 l1 73.00 / 2.87 a b c i 43.00 / 1.69 h1 Ø 108.00 / 4.25 Ø1 66.00 / 2.60 Ø2 11.00 / 0.43 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components Original Part Number 196420-02652 Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
01306	Zinc	0.120	0.26	mm inch		55.00 2.17	10.00 0.39		M8				20.00 0.79				purchasable in	01306 Zinc More details COD 01306 kg 0.120 lbs 0.26 Unit mm/inch h l 55.00 / 2.17 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m	Toggle details

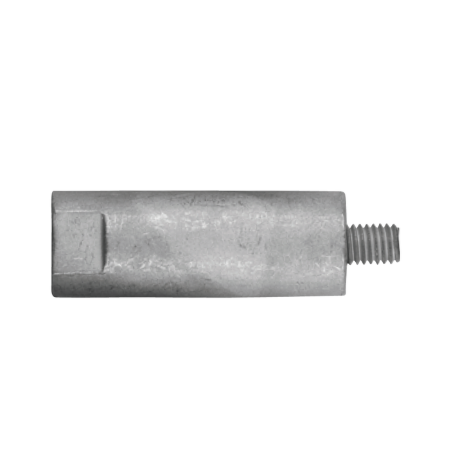

Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01306 kg 0.120 lbs 0.26 Unit mm/inch h l 55.00 / 2.17 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m Main features Installation Location Yanmar SD20, SD25, SD30, SD31; 4LH-STE and 6LY-STE, 6LY-UTE series Kit Components Original Part Number 27210-200550 - 177301-54900 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01308	Zinc	0.160	0.35	mm inch		68.00 2.68							20.00 0.79			M8	purchasable in	01308 Zinc More details COD 01308 kg 0.160 lbs 0.35 Unit mm/inch h l 68.00 / 2.68 l1 a b c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m M8	Toggle details
Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01308 kg 0.160 lbs 0.35 Unit mm/inch h l 68.00 / 2.68 l1 a b c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m M8 Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

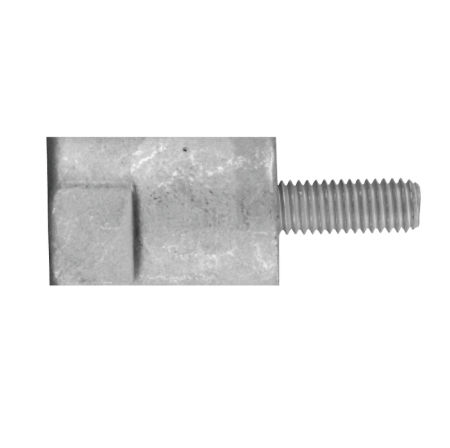

01310	Zinc	0.360	0.79	mm inch		40.00 1.57	25.00 0.98		M10				40.00 1.57				purchasable in	01310 Zinc More details COD 01310 kg 0.360 lbs 0.79 Unit mm/inch h l 40.00 / 1.57 l1 25.00 / 0.98 a b M10 c i h1 Ø 40.00 / 1.57 Ø1 Ø2 m	Toggle details
Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01310 kg 0.360 lbs 0.79 Unit mm/inch h l 40.00 / 1.57 l1 25.00 / 0.98 a b M10 c i h1 Ø 40.00 / 1.57 Ø1 Ø2 m Main features Installation Location 6lah-ste Kit Components Original Part Number 27200-400400 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01311	Zinc	0.200	0.44	mm inch		40.00 1.57	20.00 0.79						30.00 1.18			M8	purchasable in	01311 Zinc More details COD 01311 kg 0.200 lbs 0.44 Unit mm/inch h l 40.00 / 1.57 l1 20.00 / 0.79 a b c i h1 Ø 30.00 / 1.18 Ø1 Ø2 m M8	Toggle details

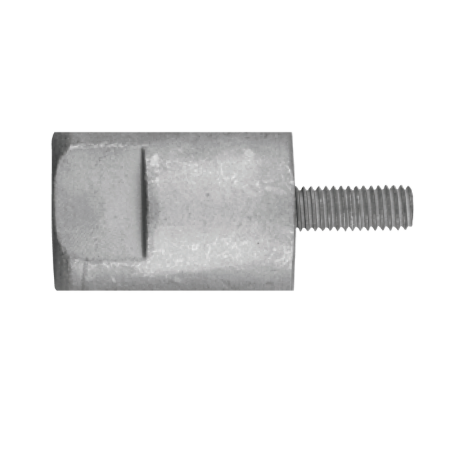

Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01311 kg 0.200 lbs 0.44 Unit mm/inch h l 40.00 / 1.57 l1 20.00 / 0.79 a b c i h1 Ø 30.00 / 1.18 Ø1 Ø2 m M8 Main features Installation Location yanmar 6hym-wet; pmx6, pmx8 series Kit Components Original Part Number 27200-300400 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01312	Zinc	0.090	0.20	mm inch		37.00 1.46	10.00 0.39		M8				20.00 0.79				purchasable in	01312 Zinc More details COD 01312 kg 0.090 lbs 0.20 Unit mm/inch h l 37.00 / 1.46 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m	Toggle details

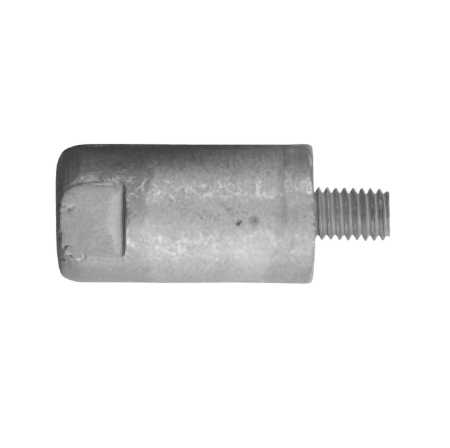

Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01312 kg 0.090 lbs 0.20 Unit mm/inch h l 37.00 / 1.46 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m Main features Installation Location yanmar 6cx-ete series (x12) Kit Components Original Part Number 27210-200370 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01313	Zinc	0.070	0.15	mm inch		30.00 1.18	10.00 0.39		M8				20.00 0.79				purchasable in	01313 Zinc More details COD 01313 kg 0.070 lbs 0.15 Unit mm/inch h l 30.00 / 1.18 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m	Toggle details
Yanmar rod anode Zinc Manufacturer: n/a Technical information COD 01313 kg 0.070 lbs 0.15 Unit mm/inch h l 30.00 / 1.18 l1 10.00 / 0.39 a b M8 c i h1 Ø 20.00 / 0.79 Ø1 Ø2 m Main features Installation Location yanmar: 2gm, 3gm, 3hm, 2qm, 3qm, ysb8-12, ysm8-12 series Kit Components Original Part Number 27210-200300 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01316	Zinc	0.030	0.07	mm inch		32.00 1.26	10.00 0.39		3/8''UNC				12.00 0.47				purchasable in	01316 Zinc More details COD 01316 kg 0.030 lbs 0.07 Unit mm/inch h l 32.00 / 1.26 l1 10.00 / 0.39 a b 3/8''UNC c i h1 Ø 12.00 / 0.47 Ø1 Ø2 m	Toggle details
Yanmar pencil anode for engine cooler Zinc Manufacturer: n/a Technical information COD 01316 kg 0.030 lbs 0.07 Unit mm/inch h l 32.00 / 1.26 l1 10.00 / 0.39 a b 3/8''UNC c i h1 Ø 12.00 / 0.47 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01316T	ZN + Brass	0.066	0.15	mm inch		32.00 1.26		3/8''GAS CONICO (bspt)		22.00 0.87			12.00 0.47				purchasable in	01316T ZN + Brass More details COD 01316T kg 0.066 lbs 0.15 Unit mm/inch h l 32.00 / 1.26 l1 a 3/8''GAS CONICO (bspt) b c 22.00 / 0.87 i h1 Ø 12.00 / 0.47 Ø1 Ø2 m	Toggle details

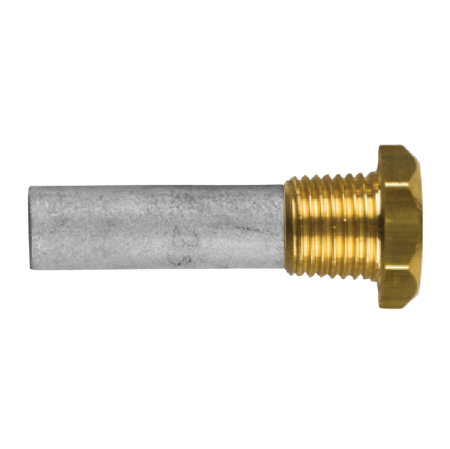

Yanmar pencil anode for engine cooler ZN + Brass Manufacturer: n/a Technical information COD 01316T kg 0.066 lbs 0.15 Unit mm/inch h l 32.00 / 1.26 l1 a 3/8''GAS CONICO (bspt) b c 22.00 / 0.87 i h1 Ø 12.00 / 0.47 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

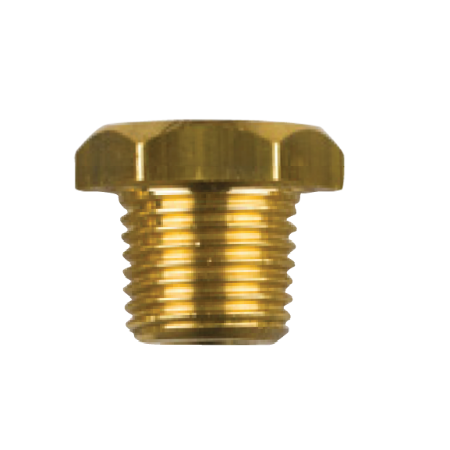

01316TP	Brass	0.039	0.09	mm inch				3/8''GAS CONICO (bspt)	3/8''UNC	22.00 0.87							purchasable in	01316TP Brass More details COD 01316TP kg 0.039 lbs 0.09 Unit mm/inch h l l1 a 3/8''GAS CONICO (bspt) b 3/8''UNC c 22.00 / 0.87 i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar pencil anode for engine cooler Brass Manufacturer: n/a Technical information COD 01316TP kg 0.039 lbs 0.09 Unit mm/inch h l l1 a 3/8''GAS CONICO (bspt) b 3/8''UNC c 22.00 / 0.87 i h1 Ø Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01317	Zinc	0.070	0.15	mm inch		51.00 2.01	12.00 0.47		7/16"UNC				16.00 0.63				purchasable in	01317 Zinc More details COD 01317 kg 0.070 lbs 0.15 Unit mm/inch h l 51.00 / 2.01 l1 12.00 / 0.47 a b 7/16"UNC c i h1 Ø 16.00 / 0.63 Ø1 Ø2 m	Toggle details

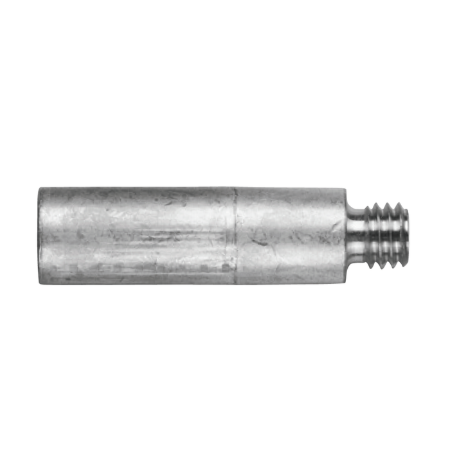

Yanmar pencil anode for engine cooler Zinc Manufacturer: n/a Technical information COD 01317 kg 0.070 lbs 0.15 Unit mm/inch h l 51.00 / 2.01 l1 12.00 / 0.47 a b 7/16"UNC c i h1 Ø 16.00 / 0.63 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number 119574-18790 Same As TEC-E2-Z Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01317T	ZN + Brass	0.130	0.29	mm inch		51.00 2.01		1/2'' gas conico (bspt)		22.00 0.87			16.00 0.63				purchasable in	01317T ZN + Brass More details COD 01317T kg 0.130 lbs 0.29 Unit mm/inch h l 51.00 / 2.01 l1 a 1/2'' gas conico (bspt) b c 22.00 / 0.87 i h1 Ø 16.00 / 0.63 Ø1 Ø2 m	Toggle details

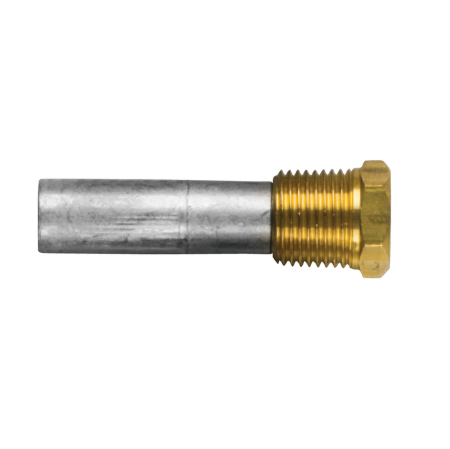

Yanmar pencil anode for engine cooler ZN + Brass Manufacturer: n/a Technical information COD 01317T kg 0.130 lbs 0.29 Unit mm/inch h l 51.00 / 2.01 l1 a 1/2'' gas conico (bspt) b c 22.00 / 0.87 i h1 Ø 16.00 / 0.63 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit kityanmar6lp/6ly/4lh Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01317TP	Zinc	0.060	0.13	mm inch				1/2'' gas conico (bspt)	7/16"UNC	22.00 0.87							purchasable in	01317TP Zinc More details COD 01317TP kg 0.060 lbs 0.13 Unit mm/inch h l l1 a 1/2'' gas conico (bspt) b 7/16"UNC c 22.00 / 0.87 i h1 Ø Ø1 Ø2 m	Toggle details

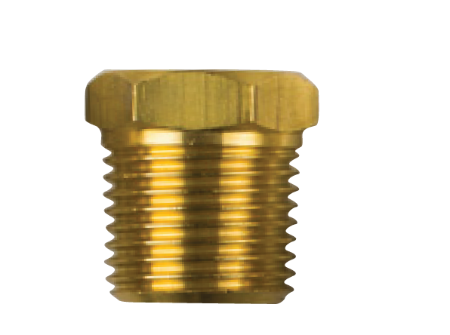

Yanmar pencil anode for engine cooler Zinc Manufacturer: n/a Technical information COD 01317TP kg 0.060 lbs 0.13 Unit mm/inch h l l1 a 1/2'' gas conico (bspt) b 7/16"UNC c 22.00 / 0.87 i h1 Ø Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01318	Zinc	0.030	0.07	mm inch		30.00 1.18	10.00 0.39		3/8''UNC				12.00 0.47				purchasable in	01318 Zinc More details COD 01318 kg 0.030 lbs 0.07 Unit mm/inch h l 30.00 / 1.18 l1 10.00 / 0.39 a b 3/8''UNC c i h1 Ø 12.00 / 0.47 Ø1 Ø2 m	Toggle details

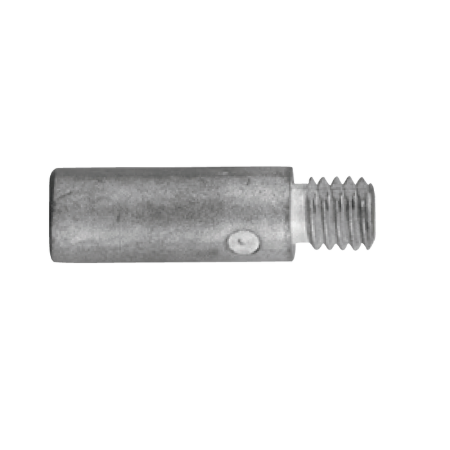

Yanmar pencil anode for engine cooler Zinc Manufacturer: n/a Technical information COD 01318 kg 0.030 lbs 0.07 Unit mm/inch h l 30.00 / 1.18 l1 10.00 / 0.39 a b 3/8''UNC c i h1 Ø 12.00 / 0.47 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As 02045-1 Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

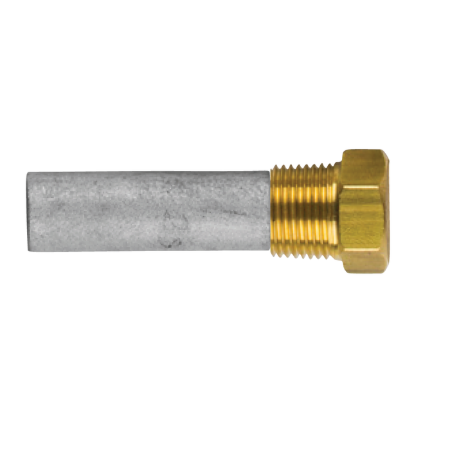

01318T	ZN + Brass	0.060	0.13	mm inch		30.00 1.18		3/8'' gas conico (bspt)		17.00 0.67			12.00 0.47				purchasable in	01318T ZN + Brass More details COD 01318T kg 0.060 lbs 0.13 Unit mm/inch h l 30.00 / 1.18 l1 a 3/8'' gas conico (bspt) b c 17.00 / 0.67 i h1 Ø 12.00 / 0.47 Ø1 Ø2 m	Toggle details
Yanmar pencil anode for engine cooler ZN + Brass Manufacturer: n/a Technical information COD 01318T kg 0.060 lbs 0.13 Unit mm/inch h l 30.00 / 1.18 l1 a 3/8'' gas conico (bspt) b c 17.00 / 0.67 i h1 Ø 12.00 / 0.47 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

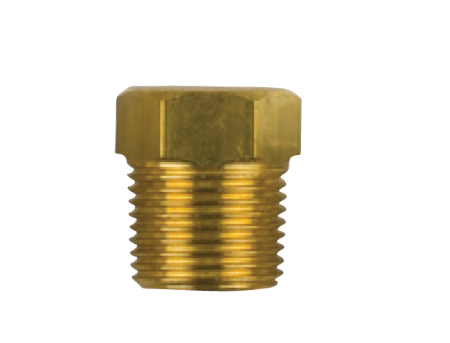

01318TP	Brass	0.030	0.07	mm inch				3/8'' gas conico (bspt)	3/8''UNC	17.00 0.67							purchasable in	01318TP Brass More details COD 01318TP kg 0.030 lbs 0.07 Unit mm/inch h l l1 a 3/8'' gas conico (bspt) b 3/8''UNC c 17.00 / 0.67 i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar pencil anode for engine cooler Brass Manufacturer: n/a Technical information COD 01318TP kg 0.030 lbs 0.07 Unit mm/inch h l l1 a 3/8'' gas conico (bspt) b 3/8''UNC c 17.00 / 0.67 i h1 Ø Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

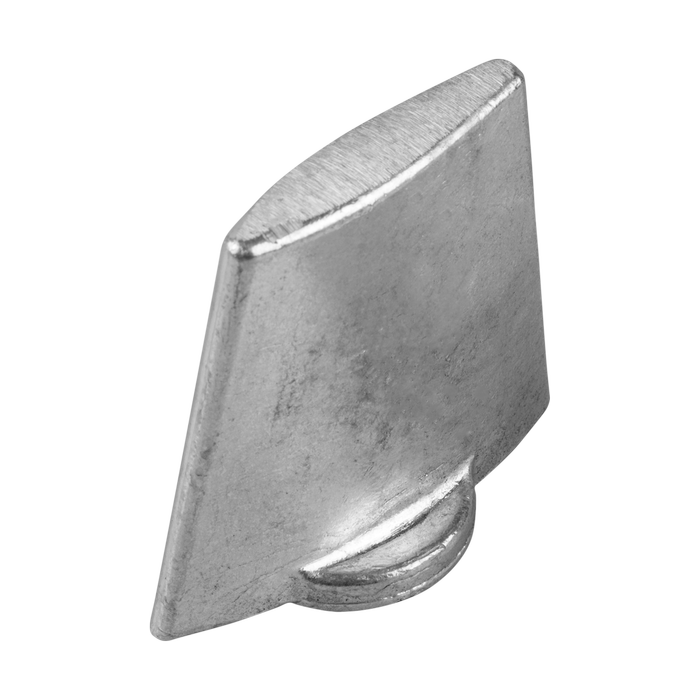

01319	Zinc	0.220	0.49	mm inch	50.00 1.97	59.00 2.32						3.00 0.12	30.00 1.18	22.00 0.87	30.00 1.18	M10	purchasable in	01319 Zinc More details COD 01319 kg 0.220 lbs 0.49 Unit mm/inch h 50.00 / 1.97 l 59.00 / 2.32 l1 a b c i h1 3.00 / 0.12 Ø 30.00 / 1.18 Ø1 22.00 / 0.87 Ø2 30.00 / 1.18 m M10	Toggle details

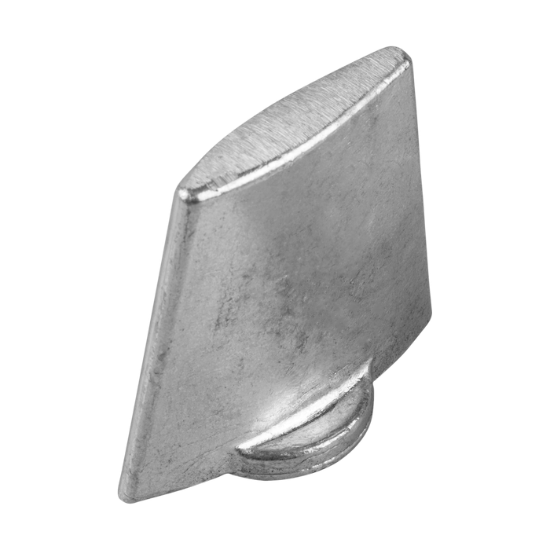

Yanmar trim tab anode Zinc Manufacturer: n/a Technical information COD 01319 kg 0.220 lbs 0.49 Unit mm/inch h 50.00 / 1.97 l 59.00 / 2.32 l1 a b c i h1 3.00 / 0.12 Ø 30.00 / 1.18 Ø1 22.00 / 0.87 Ø2 30.00 / 1.18 m M10 Main features Installation Location yanamar b63- d36a - d27a series Kit Components Original Part Number 196640-62680 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01320	Zinc	0.030	0.07	mm inch		20.00 0.79	9.00 0.35		M8				15.00 0.59				purchasable in	01320 Zinc More details COD 01320 kg 0.030 lbs 0.07 Unit mm/inch h l 20.00 / 0.79 l1 9.00 / 0.35 a b M8 c i h1 Ø 15.00 / 0.59 Ø1 Ø2 m	Toggle details

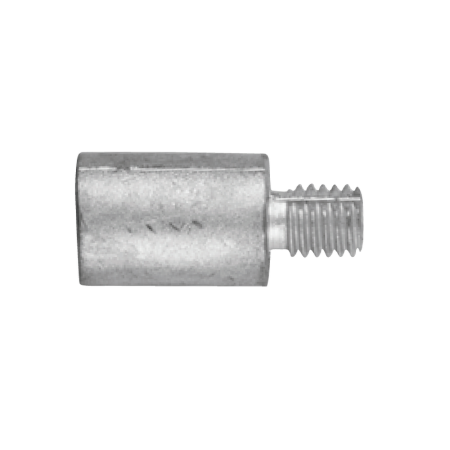

Yanmar pencil anode for engine cooler Zinc Manufacturer: n/a Technical information COD 01320 kg 0.030 lbs 0.07 Unit mm/inch h l 20.00 / 0.79 l1 9.00 / 0.35 a b M8 c i h1 Ø 15.00 / 0.59 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number 120650-18540 - 163100 - 18460 Same As 02012-1, 02029-3, 08402 Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01320T	ZN + Brass	0.070	0.15	mm inch		20.00 0.79		M18x1,5		23.00 0.91			15.00 0.59				purchasable in	01320T ZN + Brass More details COD 01320T kg 0.070 lbs 0.15 Unit mm/inch h l 20.00 / 0.79 l1 a M18x1,5 b c 23.00 / 0.91 i h1 Ø 15.00 / 0.59 Ø1 Ø2 m	Toggle details

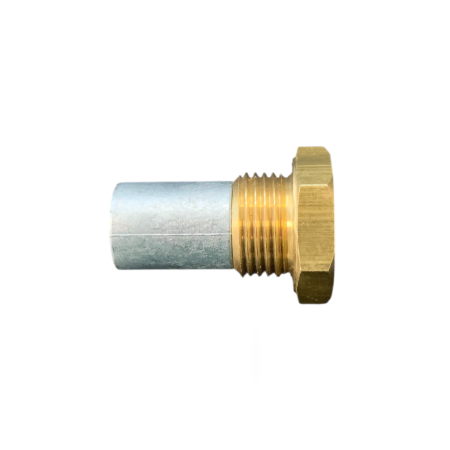

Yanmar pencil anode for engine cooler ZN + Brass Manufacturer: n/a Technical information COD 01320T kg 0.070 lbs 0.15 Unit mm/inch h l 20.00 / 0.79 l1 a M18x1,5 b c 23.00 / 0.91 i h1 Ø 15.00 / 0.59 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number 120650-18540 - 163100 - 18460 Same As 08402T, 02012-1T, 02029-3T, 06011T Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

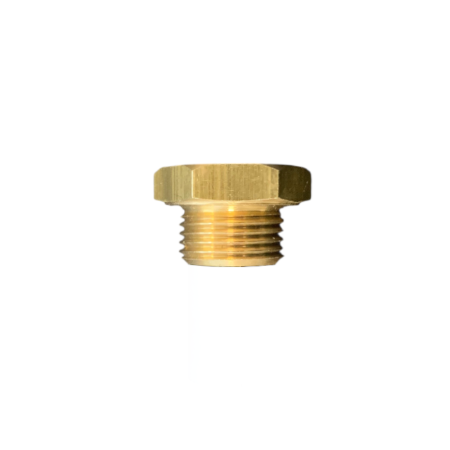

01320TP	Brass	0.040	0.09	mm inch				M18x1,5	M8	23.00 0.91							purchasable in	01320TP Brass More details COD 01320TP kg 0.040 lbs 0.09 Unit mm/inch h l l1 a M18x1,5 b M8 c 23.00 / 0.91 i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar pencil anode for engine cooler Brass Manufacturer: n/a Technical information COD 01320TP kg 0.040 lbs 0.09 Unit mm/inch h l l1 a M18x1,5 b M8 c 23.00 / 0.91 i h1 Ø Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number 120650-18540 - 163100 - 18460 Same As 02012-1TP, 02029-3TP, 08402TP Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01321	Zinc	0.030	0.07	mm inch		38.00 1.50	12.00 0.47		3/8				12.70 0.50				purchasable in	01321 Zinc More details COD 01321 kg 0.030 lbs 0.07 Unit mm/inch h l 38.00 / 1.50 l1 12.00 / 0.47 a b 3/8 c i h1 Ø 12.70 / 0.50 Ø1 Ø2 m	Toggle details

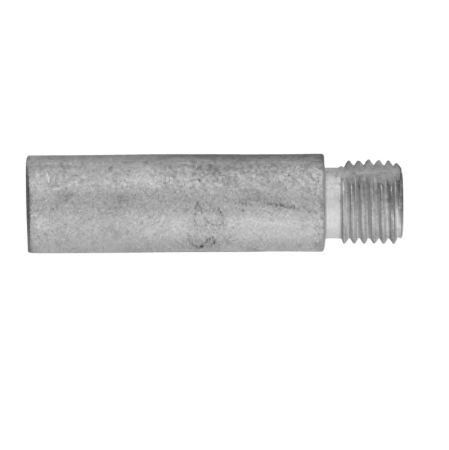

Yanmar pencil anode for engine cooler Zinc Manufacturer: n/a Technical information COD 01321 kg 0.030 lbs 0.07 Unit mm/inch h l 38.00 / 1.50 l1 12.00 / 0.47 a b 3/8 c i h1 Ø 12.70 / 0.50 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number 119574-44150 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
01321T	ZN + Brass	0.070	0.15	mm inch		38.00 1.50		3/8''NPT		19.00 0.75			12.70 0.50				purchasable in	01321T ZN + Brass More details COD 01321T kg 0.070 lbs 0.15 Unit mm/inch h l 38.00 / 1.50 l1 a 3/8''NPT b c 19.00 / 0.75 i h1 Ø 12.70 / 0.50 Ø1 Ø2 m	Toggle details

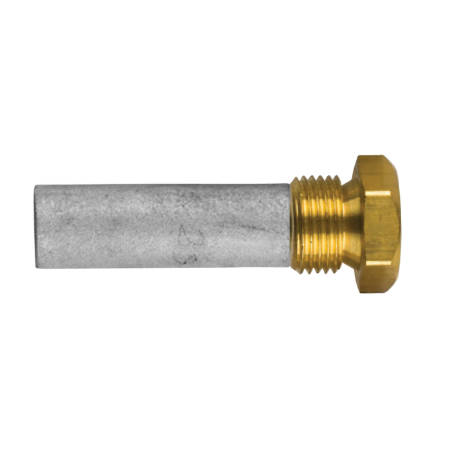

Yanmar pencil anode for engine cooler ZN + Brass Manufacturer: n/a Technical information COD 01321T kg 0.070 lbs 0.15 Unit mm/inch h l 38.00 / 1.50 l1 a 3/8''NPT b c 19.00 / 0.75 i h1 Ø 12.70 / 0.50 Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit kityanmar6lp/6ly/4lh Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

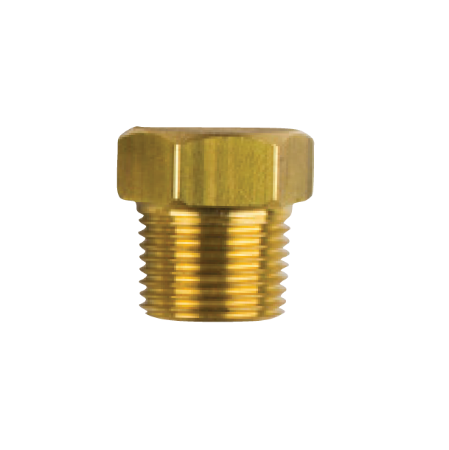

01321TP	Brass	0.040	0.09	mm inch				3/8''NPT	3/8"UNC	19.00 0.75							purchasable in	01321TP Brass More details COD 01321TP kg 0.040 lbs 0.09 Unit mm/inch h l l1 a 3/8''NPT b 3/8"UNC c 19.00 / 0.75 i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar pencil anode for engine cooler Brass Manufacturer: n/a Technical information COD 01321TP kg 0.040 lbs 0.09 Unit mm/inch h l l1 a 3/8''NPT b 3/8"UNC c 19.00 / 0.75 i h1 Ø Ø1 Ø2 m Main features Installation Location Kit Components Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details

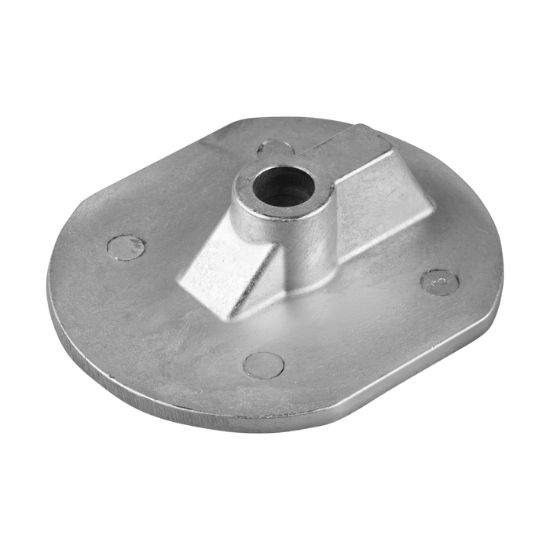

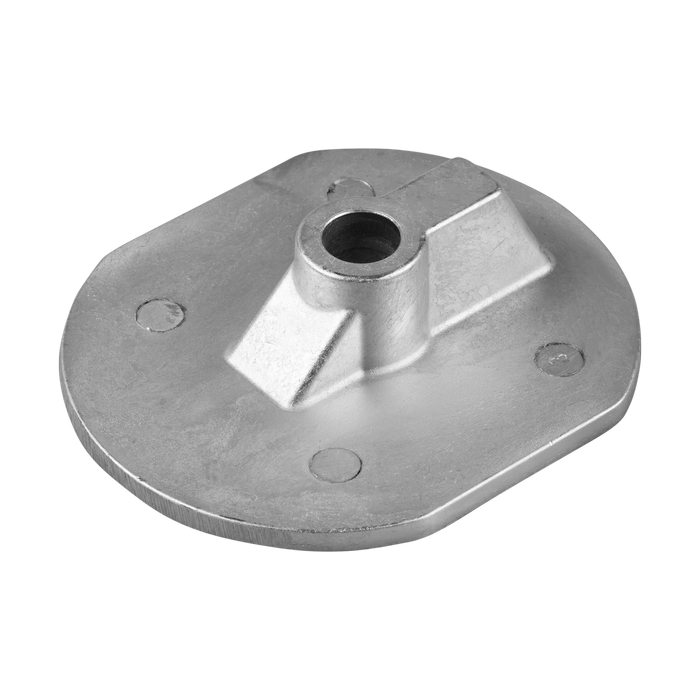

01390-1	Zinc	0.300	0.66	mm inch	25.00 0.98			82.00 3.23								M10	purchasable in	01390-1 Zinc More details COD 01390-1 kg 0.300 lbs 0.66 Unit mm/inch h 25.00 / 0.98 l l1 a 82.00 / 3.23 b c i h1 Ø Ø1 Ø2 m M10	Toggle details

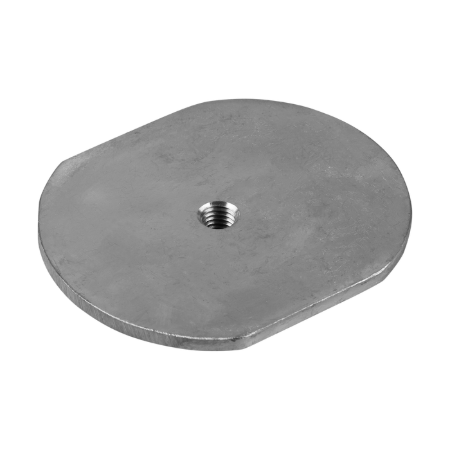

Yanmar Anode For Gear Housing Plate A Zinc Manufacturer: n/a Technical information COD 01390-1 kg 0.300 lbs 0.66 Unit mm/inch h 25.00 / 0.98 l l1 a 82.00 / 3.23 b c i h1 Ø Ø1 Ø2 m M10 Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02550 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01390-1AL	Aluminium	0.140	0.31	mm inch	25.00 0.98			82.00 3.23								M10	purchasable in	01390-1AL Aluminium More details COD 01390-1AL kg 0.140 lbs 0.31 Unit mm/inch h 25.00 / 0.98 l l1 a 82.00 / 3.23 b c i h1 Ø Ø1 Ø2 m M10	Toggle details
Yanmar Anode For Gear Housing Plate A Aluminium Manufacturer: n/a Technical information COD 01390-1AL kg 0.140 lbs 0.31 Unit mm/inch h 25.00 / 0.98 l l1 a 82.00 / 3.23 b c i h1 Ø Ø1 Ø2 m M10 Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02550 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01390-1MG	Magnesium	0.090	0.20	mm inch	25.00 0.98			82.00 3.23								M10	purchasable in	01390-1MG Magnesium More details COD 01390-1MG kg 0.090 lbs 0.20 Unit mm/inch h 25.00 / 0.98 l l1 a 82.00 / 3.23 b c i h1 Ø Ø1 Ø2 m M10	Toggle details
Yanmar Anode For Gear Housing Plate A Magnesium Manufacturer: n/a Technical information COD 01390-1MG kg 0.090 lbs 0.20 Unit mm/inch h 25.00 / 0.98 l l1 a 82.00 / 3.23 b c i h1 Ø Ø1 Ø2 m M10 Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02550 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01391-1	Zinc	0.270	0.60	mm inch	24.00 0.94			82.00 3.23					12.00 0.47	19.00 0.75			purchasable in	01391-1 Zinc More details COD 01391-1 kg 0.270 lbs 0.60 Unit mm/inch h 24.00 / 0.94 l l1 a 82.00 / 3.23 b c i h1 Ø 12.00 / 0.47 Ø1 19.00 / 0.75 Ø2 m	Toggle details

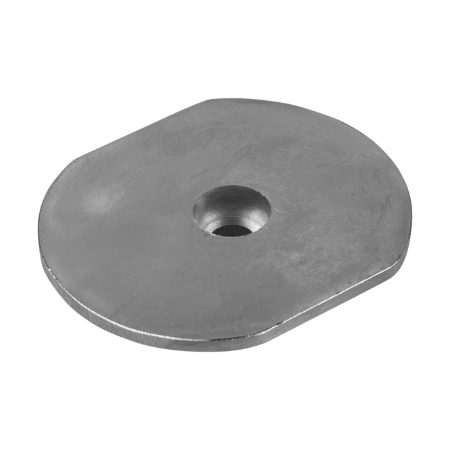

Yanmar Anode For Gear Housing Plate B Zinc Manufacturer: n/a Technical information COD 01391-1 kg 0.270 lbs 0.60 Unit mm/inch h 24.00 / 0.94 l l1 a 82.00 / 3.23 b c i h1 Ø 12.00 / 0.47 Ø1 19.00 / 0.75 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02570 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01391-1AL	Aluminium	0.130	0.29	mm inch	24.00 0.94			82.00 3.23					12.00 0.47	19.00 0.75			purchasable in	01391-1AL Aluminium More details COD 01391-1AL kg 0.130 lbs 0.29 Unit mm/inch h 24.00 / 0.94 l l1 a 82.00 / 3.23 b c i h1 Ø 12.00 / 0.47 Ø1 19.00 / 0.75 Ø2 m	Toggle details
Yanmar Anode For Gear Housing Plate B Aluminium Manufacturer: n/a Technical information COD 01391-1AL kg 0.130 lbs 0.29 Unit mm/inch h 24.00 / 0.94 l l1 a 82.00 / 3.23 b c i h1 Ø 12.00 / 0.47 Ø1 19.00 / 0.75 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02570 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01391-1MG	Magnesium	0.080	0.18	mm inch	24.00 0.94			82.00 3.23					12.00 0.47	19.00 0.75			purchasable in	01391-1MG Magnesium More details COD 01391-1MG kg 0.080 lbs 0.18 Unit mm/inch h 24.00 / 0.94 l l1 a 82.00 / 3.23 b c i h1 Ø 12.00 / 0.47 Ø1 19.00 / 0.75 Ø2 m	Toggle details
Yanmar Anode For Gear Housing Plate B Magnesium Manufacturer: n/a Technical information COD 01391-1MG kg 0.080 lbs 0.18 Unit mm/inch h 24.00 / 0.94 l l1 a 82.00 / 3.23 b c i h1 Ø 12.00 / 0.47 Ø1 19.00 / 0.75 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02570 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01392-1	Zinc	0.470	1.04	mm inch	61.00 2.40			37.00 1.46					55.00 2.17	11.00 0.43			purchasable in	01392-1 Zinc More details COD 01392-1 kg 0.470 lbs 1.04 Unit mm/inch h 61.00 / 2.40 l l1 a 37.00 / 1.46 b c i h1 Ø 55.00 / 2.17 Ø1 11.00 / 0.43 Ø2 m	Toggle details

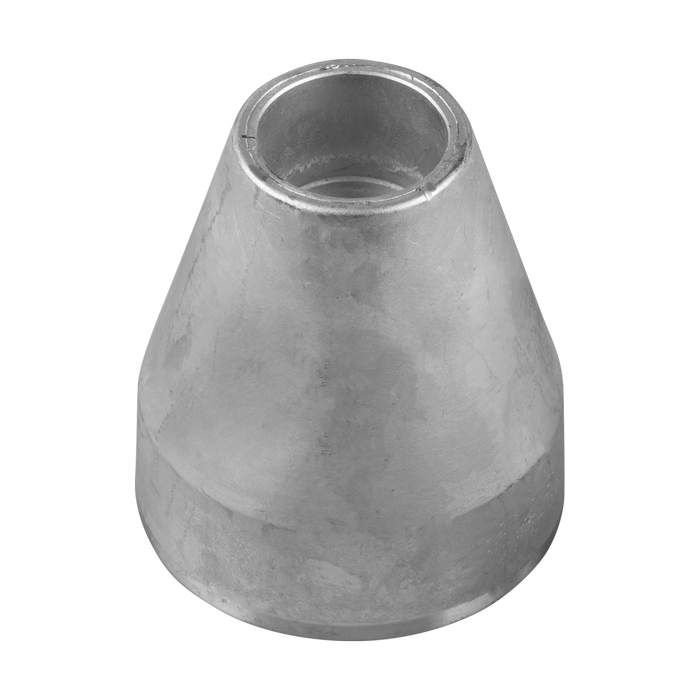

Yanmar Sterndrive propeller nut anode Zinc Manufacturer: n/a Technical information COD 01392-1 kg 0.470 lbs 1.04 Unit mm/inch h 61.00 / 2.40 l l1 a 37.00 / 1.46 b c i h1 Ø 55.00 / 2.17 Ø1 11.00 / 0.43 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-09910 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01392-1AL	Aluminium	0.180	0.40	mm inch	61.00 2.40			37.00 1.46					55.00 2.17	11.00 0.43			purchasable in	01392-1AL Aluminium More details COD 01392-1AL kg 0.180 lbs 0.40 Unit mm/inch h 61.00 / 2.40 l l1 a 37.00 / 1.46 b c i h1 Ø 55.00 / 2.17 Ø1 11.00 / 0.43 Ø2 m	Toggle details
Yanmar Sterndrive propeller nut anode Aluminium Manufacturer: n/a Technical information COD 01392-1AL kg 0.180 lbs 0.40 Unit mm/inch h 61.00 / 2.40 l l1 a 37.00 / 1.46 b c i h1 Ø 55.00 / 2.17 Ø1 11.00 / 0.43 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-09910 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01392-1MG	Magnesium	0.110	0.24	mm inch	61.00 2.40			37.00 1.46					55.00 2.17	11.00 0.43			purchasable in	01392-1MG Magnesium More details COD 01392-1MG kg 0.110 lbs 0.24 Unit mm/inch h 61.00 / 2.40 l l1 a 37.00 / 1.46 b c i h1 Ø 55.00 / 2.17 Ø1 11.00 / 0.43 Ø2 m	Toggle details
Yanmar Sterndrive propeller nut anode Magnesium Manufacturer: n/a Technical information COD 01392-1MG kg 0.110 lbs 0.24 Unit mm/inch h 61.00 / 2.40 l l1 a 37.00 / 1.46 b c i h1 Ø 55.00 / 2.17 Ø1 11.00 / 0.43 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-09910 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01393-1	Zinc	0.270	0.60	mm inch	50.00 1.97			51.00 2.01	12.00 0.47	22.00 0.87	38.00 1.50			5.50 0.22			purchasable in	01393-1 Zinc More details COD 01393-1 kg 0.270 lbs 0.60 Unit mm/inch h 50.00 / 1.97 l l1 a 51.00 / 2.01 b 12.00 / 0.47 c 22.00 / 0.87 i 38.00 / 1.50 h1 Ø Ø1 5.50 / 0.22 Ø2 m	Toggle details
Yanmar Anode For Trim Cylinder Zinc Manufacturer: n/a Technical information COD 01393-1 kg 0.270 lbs 0.60 Unit mm/inch h 50.00 / 1.97 l l1 a 51.00 / 2.01 b 12.00 / 0.47 c 22.00 / 0.87 i 38.00 / 1.50 h1 Ø Ø1 5.50 / 0.22 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-07360 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01393-1AL	Aluminium	0.100	0.22	mm inch	50.00 1.97			51.00 2.01	12.00 0.47	22.00 0.87	38.00 1.50			5.50 0.22			purchasable in	01393-1AL Aluminium More details COD 01393-1AL kg 0.100 lbs 0.22 Unit mm/inch h 50.00 / 1.97 l l1 a 51.00 / 2.01 b 12.00 / 0.47 c 22.00 / 0.87 i 38.00 / 1.50 h1 Ø Ø1 5.50 / 0.22 Ø2 m	Toggle details
Yanmar Anode For Trim Cylinder Aluminium Manufacturer: n/a Technical information COD 01393-1AL kg 0.100 lbs 0.22 Unit mm/inch h 50.00 / 1.97 l l1 a 51.00 / 2.01 b 12.00 / 0.47 c 22.00 / 0.87 i 38.00 / 1.50 h1 Ø Ø1 5.50 / 0.22 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-07360 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01393-1MG	Magnesium	0.070	0.15	mm inch	50.00 1.97			51.00 2.01	12.00 0.47	22.00 0.87	38.00 1.50			5.50 0.22			purchasable in	01393-1MG Magnesium More details COD 01393-1MG kg 0.070 lbs 0.15 Unit mm/inch h 50.00 / 1.97 l l1 a 51.00 / 2.01 b 12.00 / 0.47 c 22.00 / 0.87 i 38.00 / 1.50 h1 Ø Ø1 5.50 / 0.22 Ø2 m	Toggle details
Yanmar Anode For Trim Cylinder Magnesium Manufacturer: n/a Technical information COD 01393-1MG kg 0.070 lbs 0.15 Unit mm/inch h 50.00 / 1.97 l l1 a 51.00 / 2.01 b 12.00 / 0.47 c 22.00 / 0.87 i 38.00 / 1.50 h1 Ø Ø1 5.50 / 0.22 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-07360 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details

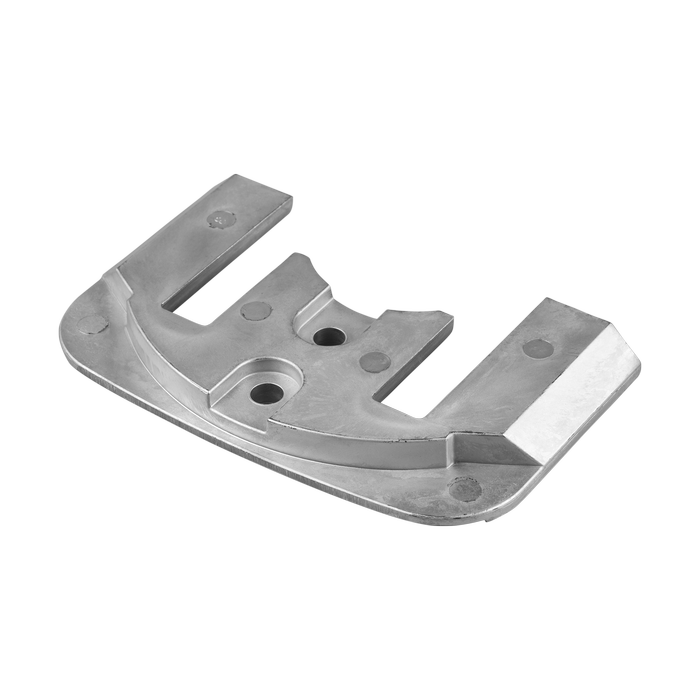

01394-1	Zinc	1.000	2.20	mm inch	17.00 0.67	178.00 7.01		109.00 4.29			35.00 1.38			10.00 0.39			purchasable in	01394-1 Zinc More details COD 01394-1 kg 1.000 lbs 2.20 Unit mm/inch h 17.00 / 0.67 l 178.00 / 7.01 l1 a 109.00 / 4.29 b c i 35.00 / 1.38 h1 Ø Ø1 10.00 / 0.39 Ø2 m	Toggle details
Yanmar Anode For Driveshaft Housing Zinc Manufacturer: n/a Technical information COD 01394-1 kg 1.000 lbs 2.20 Unit mm/inch h 17.00 / 0.67 l 178.00 / 7.01 l1 a 109.00 / 4.29 b c i 35.00 / 1.38 h1 Ø Ø1 10.00 / 0.39 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02350 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01394-1AL	Aluminium	0.380	0.84	mm inch	17.00 0.67	178.00 7.01		109.00 4.29			35.00 1.38			10.00 0.39			purchasable in	01394-1AL Aluminium More details COD 01394-1AL kg 0.380 lbs 0.84 Unit mm/inch h 17.00 / 0.67 l 178.00 / 7.01 l1 a 109.00 / 4.29 b c i 35.00 / 1.38 h1 Ø Ø1 10.00 / 0.39 Ø2 m	Toggle details
Yanmar Anode For Driveshaft Housing Aluminium Manufacturer: n/a Technical information COD 01394-1AL kg 0.380 lbs 0.84 Unit mm/inch h 17.00 / 0.67 l 178.00 / 7.01 l1 a 109.00 / 4.29 b c i 35.00 / 1.38 h1 Ø Ø1 10.00 / 0.39 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02350 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
01394-1MG	Magnesium	0.240	0.53	mm inch	17.00 0.67	178.00 7.01		109.00 4.29			35.00 1.38			10.00 0.39			purchasable in	01394-1MG Magnesium More details COD 01394-1MG kg 0.240 lbs 0.53 Unit mm/inch h 17.00 / 0.67 l 178.00 / 7.01 l1 a 109.00 / 4.29 b c i 35.00 / 1.38 h1 Ø Ø1 10.00 / 0.39 Ø2 m	Toggle details
Yanmar Anode For Driveshaft Housing Magnesium Manufacturer: n/a Technical information COD 01394-1MG kg 0.240 lbs 0.53 Unit mm/inch h 17.00 / 0.67 l 178.00 / 7.01 l1 a 109.00 / 4.29 b c i 35.00 / 1.38 h1 Ø Ø1 10.00 / 0.39 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components Original Part Number 196350-02350 Same As Sold as Part of a Kit kityanmarstd Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
KIT1305-1	Zinc	0.940	2.07	mm inch													purchasable in	KIT1305-1 Zinc More details COD KIT1305-1 kg 0.940 lbs 2.07 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details

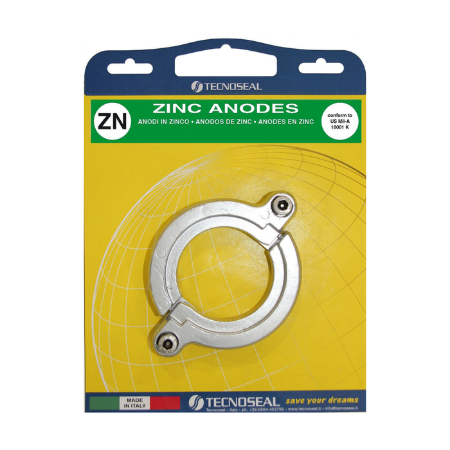

Yanmar Saildrive kit: anodes + hardware included (no brackets) Zinc Manufacturer: n/a Technical information COD KIT1305-1 kg 0.940 lbs 2.07 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components 1 x 01305/1 Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
KIT1305-1AL	Aluminium	0.480	1.06	mm inch													purchasable in	KIT1305-1AL Aluminium More details COD KIT1305-1AL kg 0.480 lbs 1.06 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar Saildrive kit: anodes + hardware included (no brackets) Aluminium Manufacturer: n/a Technical information COD KIT1305-1AL kg 0.480 lbs 1.06 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components 1 x 01305/1al Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
KIT1305-1C	Zinc	0.100	0.22	mm inch													purchasable in	KIT1305-1C Zinc More details COD KIT1305-1C kg 0.100 lbs 0.22 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar Saildrive kit: anodes + hardware included (no brackets) Zinc Manufacturer: n/a Technical information COD KIT1305-1C kg 0.100 lbs 0.22 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components 1 x 01305/1 , 1 x PLAC-1 Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
KIT1305-1CAL	Aluminium	0.985	2.17	mm inch													purchasable in	KIT1305-1CAL Aluminium More details COD KIT1305-1CAL kg 0.985 lbs 2.17 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details

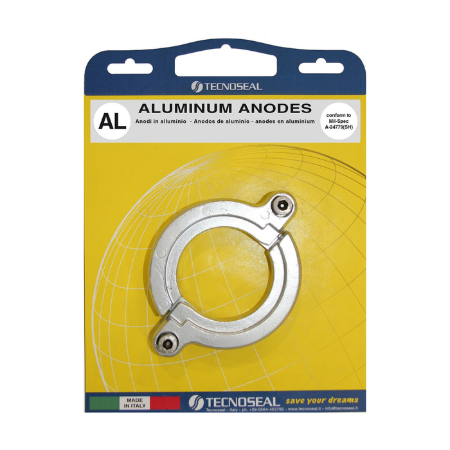

Yanmar Saildrive kit: anodes + hardware included (no brackets) Aluminium Manufacturer: n/a Technical information COD KIT1305-1CAL kg 0.985 lbs 2.17 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components 1 x 01305/1AL , 1 x PLAC-1 Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details

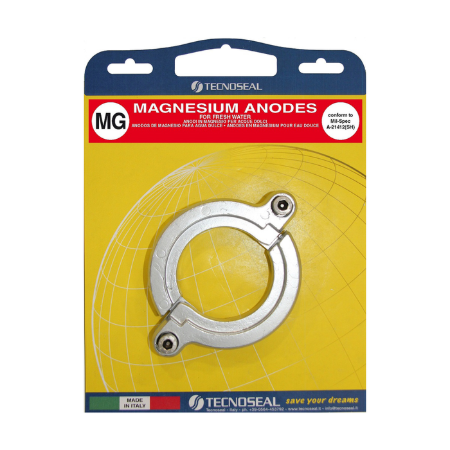

KIT1305-1CMG	Magnesium	0.580	1.28	mm inch													purchasable in	KIT1305-1CMG Magnesium More details COD KIT1305-1CMG kg 0.580 lbs 1.28 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar Saildrive kit: anodes + hardware included (no brackets) Magnesium Manufacturer: n/a Technical information COD KIT1305-1CMG kg 0.580 lbs 1.28 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components 1 x 01305/1MG , 1 x PLAC-1 Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
KIT1305-1MG	Magnesium	0.370	0.82	mm inch													purchasable in	KIT1305-1MG Magnesium More details COD KIT1305-1MG kg 0.370 lbs 0.82 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar Saildrive kit: anodes + hardware included (no brackets) Magnesium Manufacturer: n/a Technical information COD KIT1305-1MG kg 0.370 lbs 0.82 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components 1 x 01305/1mg Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
KITYANMA6LP/6LY/4LH	Zinc	0.384	0.85	mm inch													purchasable in	KITYANMA6LP/6LY/4LH Zinc More details COD KITYANMA6LP/6LY/4LH kg 0.384 lbs 0.85 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details

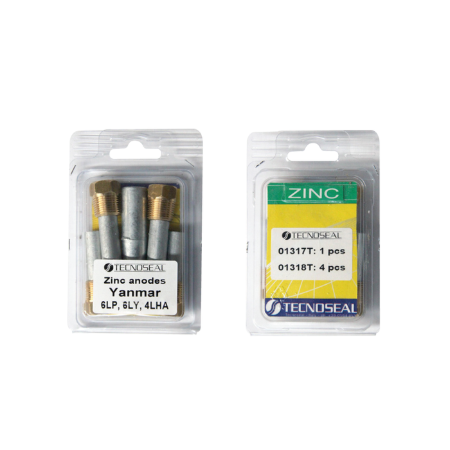

Yanmar pencils kit: anodes + plugs Zinc Manufacturer: n/a Technical information COD KITYANMA6LP/6LY/4LH kg 0.384 lbs 0.85 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location Yanmar inboard engines 6LP / 6LY Kit Components 1 x 01317t + 4 x 01318t Original Part Number 119773-92600 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with Inboard engine Other Info Quantity per Box Go to details
KITYANMARSTD	Zinc	2.675	5.90	mm inch													purchasable in	KITYANMARSTD Zinc More details COD KITYANMARSTD kg 2.675 lbs 5.90 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details

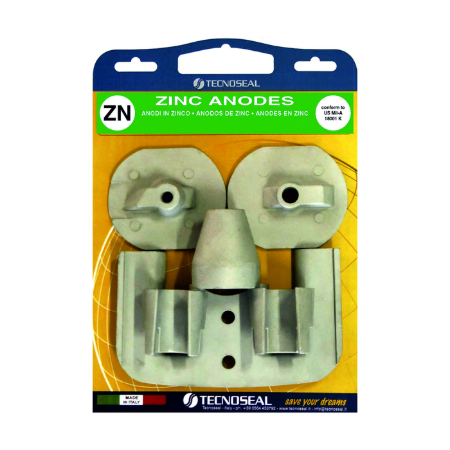

Yanmar Sterndrive kit Zinc Manufacturer: n/a Technical information COD KITYANMARSTD kg 2.675 lbs 5.90 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components 1 x 01390-1 + 1 x 01391-1 + 1 x 01392-1 + 2 x 01393-1 + 1 x 01394-1 Original Part Number Same As Sold as Part of a Kit Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
KITYANMARSTDAL	Aluminium	1.034	2.28	mm inch													purchasable in	KITYANMARSTDAL Aluminium More details COD KITYANMARSTDAL kg 1.034 lbs 2.28 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details

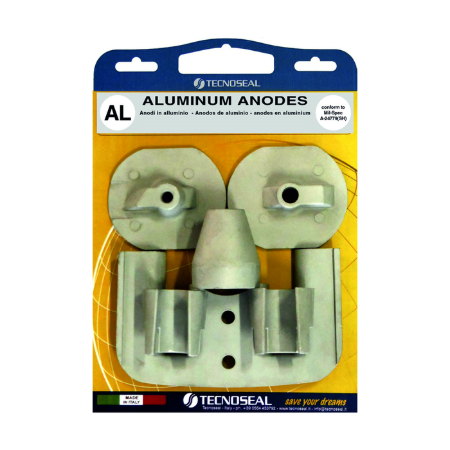

Yanmar Sterndrive kit Aluminium Manufacturer: n/a Technical information COD KITYANMARSTDAL kg 1.034 lbs 2.28 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components 1 x 01390-1al + 1 x 01391-1al + 1 x 01392-1al + 2 x 01393-1al + 1 x 01394-1al Original Part Number 196450-02490 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details

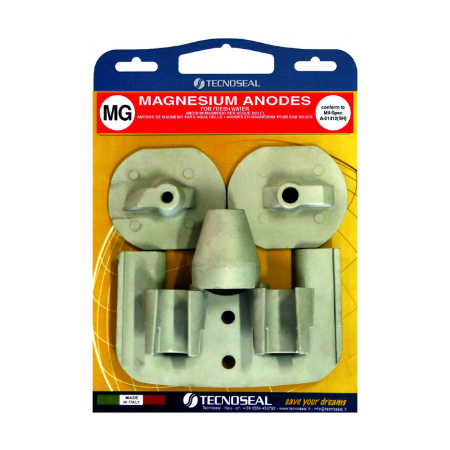

KITYANMARSTDMG	Magnesium	0.992	2.19	mm inch													purchasable in	KITYANMARSTDMG Magnesium More details COD KITYANMARSTDMG kg 0.992 lbs 2.19 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m	Toggle details
Yanmar Sterndrive kit Magnesium Manufacturer: n/a Technical information COD KITYANMARSTDMG kg 0.992 lbs 2.19 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 m Main features Installation Location yanmar sterndrive zt350-zt370 Kit Components 1 x 01390-1mg + 1 x 01391-1mg + 1 x 01392-1mg + 2 x 01393-1mg + 1 x 01394-1mg Original Part Number 196450-02442 Same As Sold as Part of a Kit Application and other information Boat Type motorboat with sterndrive Other Info Quantity per Box Go to details
PLAC-1	Stainless Steel	0.200	0.44	mm inch											7.00 0.28	M8	purchasable in	PLAC-1 Stainless Steel More details COD PLAC-1 kg 0.200 lbs 0.44 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 7.00 / 0.28 m M8	Toggle details

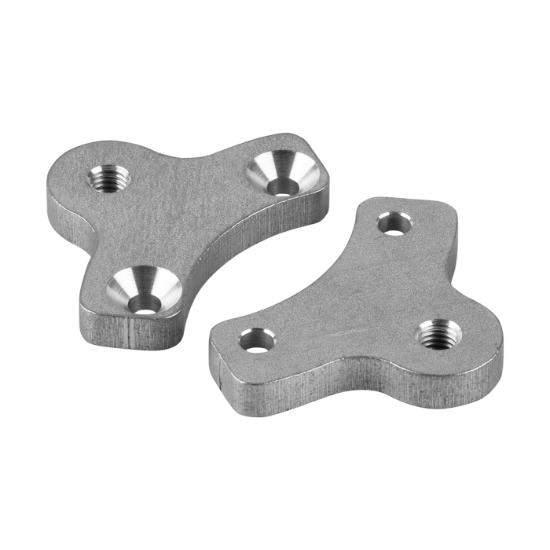

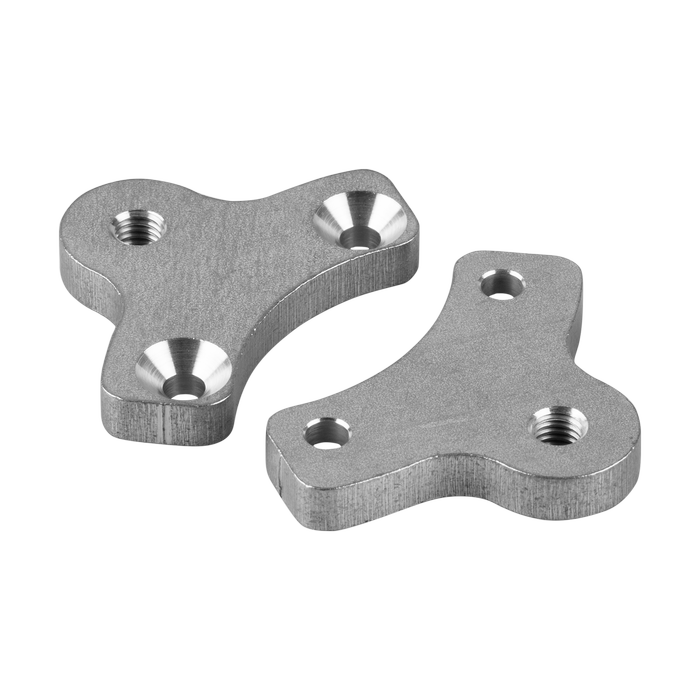

Yanmar plate adapter for Saildrive's collar Stainless Steel Manufacturer: n/a Technical information COD PLAC-1 kg 0.200 lbs 0.44 Unit mm/inch h l l1 a b c i h1 Ø Ø1 Ø2 7.00 / 0.28 m M8 Main features Installation Location yanmar sd20, sd25, sd30, sd31, sd40, sd50 and sd60 saildrives. Kit Components Original Part Number 196440-02690 Same As Sold as Part of a Kit Application and other information Boat Type Sailing boat Other Info Quantity per Box Go to details
